GraphQL Federation으로 여러 GraphQL 서비스 통합하기

GraphQL Federation의 목적

GraphQL Federation이란?

GraphQL 기본 개념

Object type과 field

type Product {
	id: ID!
	name: String!
	price(in: Currency = KRW): Float!
}

enum Currency {
	KRW
	USD
}

Object type간의 관계

type Review {
	id: ID!
	rating: Float!
  body: String!
	product: Product!
}

type Product {
	...
	reviews: [Review!]!
}

Query object type과 GraphQL query문

type Query {
	products: [Product!]!
}

query AllProductsAndTheirReviews {
	products {
		id
		name
		price
		reviews {
			id
			rating
			body
		}
	}
}

Field Resolver

const resolvers = {
	Query: {
		products: async (parent, arguments, context, info) => {
			return await context.fetchAllProducts();
		}
	},
	Product: {
		reviews: async (parent, arguments, context, info) => {
			return await context.fetchReviewsByProductId(parent.id);
		}
  }
}

Apollo Federation의 개념

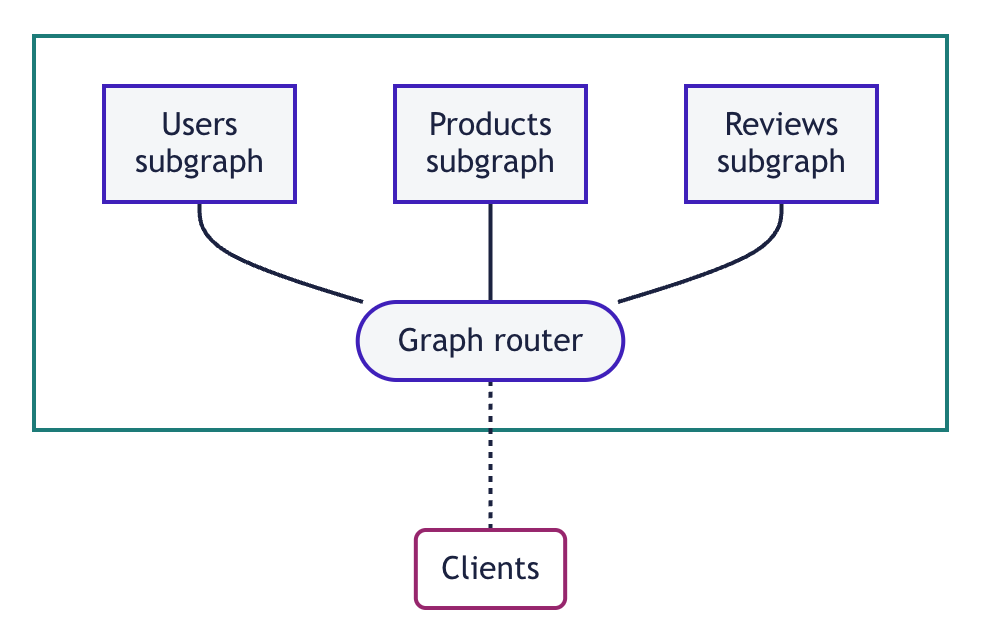

모놀리틱에서 MSA로의 전환

type Product {
	id: ID!
  name: String!
  price(in: Currency = KRW): Float!
}

type Query {
	products: [Product!]!
}

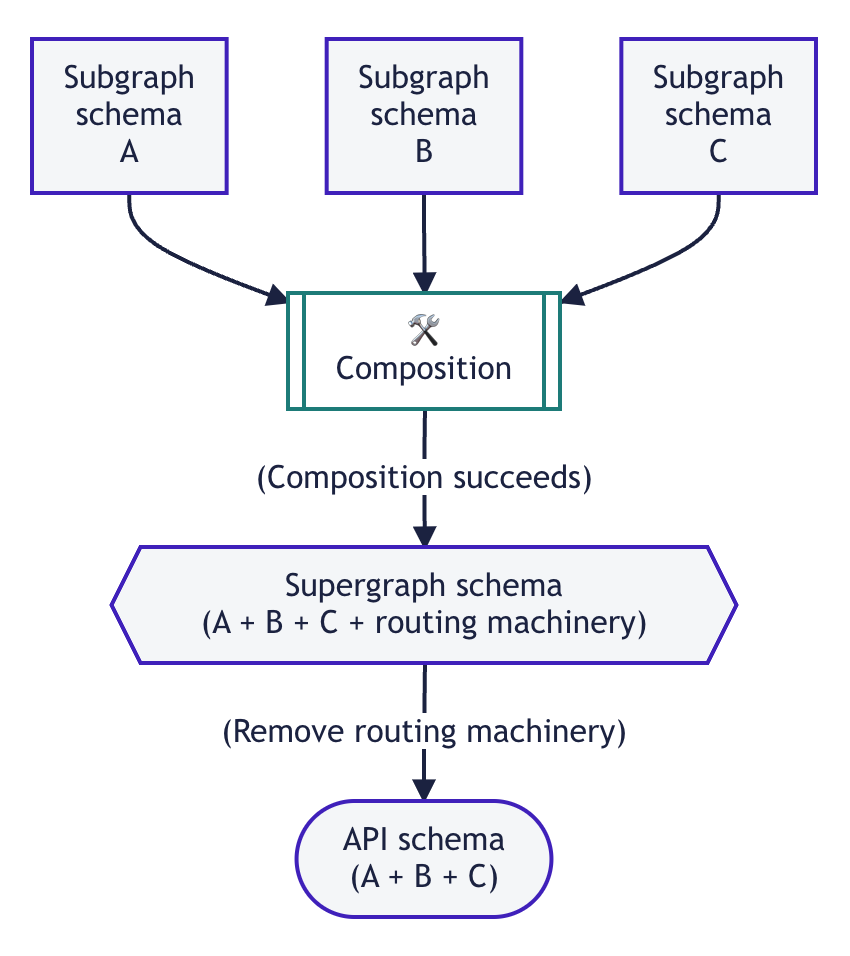

Schema의 종류

1. Subgraph schema: Subgraph는 각 GraphQL (마이크로)서비스를 의미하며, 각 서비스가 제공하는 GraphQL schema를 subgraph schema라고 합니다.

2. Supergraph schema: 모든 subgraph schema와, 거기에 어떤 subgraph가 어떤 field를 resolve할 수 있는지에 대한 정보를 포함하는 schema입니다.

3. API schema: Supergraph schema에서 routing 정보를 제외한 schema로, 클라이언트에게 노출 되는 schema입니다.

type Query {
  me: User
}

type User @key(fields: "id") {
  id: ID!
  username: String! @shareable
}

# (Subgraph schemas include this to opt in to Federation 2 features.)
extend schema
  @link(url: "https://specs.apollo.dev/federation/v2.0",
        import: ["@key", "@shareable"])

type Query {
  topProducts(first: Int = 5): [Product]
}

type Product @key(fields: "upc") {
  upc: String!
  name: String!
  price: Int
}

extend schema
  @link(url: "https://specs.apollo.dev/federation/v2.0",
        import: ["@key", "@shareable"])

type Review {
  body: String
  author: User @provides(fields: "username")
  product: Product
}

type User @key(fields: "id") {
  id: ID!
  username: String! @external
  reviews: [Review]
}

type Product @key(fields: "upc") {
  upc: String!
  reviews: [Review]
}

# (This subgraph uses additional federated directives)
extend schema
  @link(url: "https://specs.apollo.dev/federation/v2.0",
        import: ["@key", "@shareable", "@provides", "@external"])

schema
  @link(url: "https://specs.apollo.dev/link/v1.0")
  @link(url: "https://specs.apollo.dev/join/v0.2", for: EXECUTION)
{
  query: Query
}

directive @join__field(graph: join__Graph!, requires: join__FieldSet, provides: join__FieldSet, type: String, external: Boolean, override: String, usedOverridden: Boolean) repeatable on FIELD_DEFINITION | INPUT_FIELD_DEFINITION

directive @join__graph(name: String!, url: String!) on ENUM_VALUE

directive @join__implements(graph: join__Graph!, interface: String!) repeatable on OBJECT | INTERFACE

directive @join__type(graph: join__Graph!, key: join__FieldSet, extension: Boolean! = false, resolvable: Boolean! = true) repeatable on OBJECT | INTERFACE | UNION | ENUM | INPUT_OBJECT | SCALAR

directive @link(url: String, as: String, for: link__Purpose, import: [link__Import]) repeatable on SCHEMA

scalar join__FieldSet

enum join__Graph {
  PRODUCTS @join__graph(name: "products", url: "http://localhost:4003/graphql")
  REVIEWS @join__graph(name: "reviews", url: "http://localhost:4002/graphql")
  USERS @join__graph(name: "users", url: "http://localhost:4001/graphql")
}

scalar link__Import

enum link__Purpose {
  """
  `SECURITY` features provide metadata necessary to securely resolve fields.
  """
  SECURITY

  """
  `EXECUTION` features provide metadata necessary for operation execution.
  """
  EXECUTION
}

type Product
  @join__type(graph: PRODUCTS, key: "upc")
  @join__type(graph: REVIEWS, key: "upc")
{
  upc: String!
  name: String! @join__field(graph: PRODUCTS)
  price: Int @join__field(graph: PRODUCTS)
  reviews: [Review] @join__field(graph: REVIEWS)
}

type Query
  @join__type(graph: PRODUCTS)
  @join__type(graph: REVIEWS)
  @join__type(graph: USERS)
{
  topProducts(first: Int = 5): [Product] @join__field(graph: PRODUCTS)
  me: User @join__field(graph: USERS)
}

type Review
  @join__type(graph: REVIEWS)
{
  body: String
  author: User @join__field(graph: REVIEWS, provides: "username")
  product: Product
}

type User
  @join__type(graph: REVIEWS, key: "id")
  @join__type(graph: USERS, key: "id")
{
  id: ID!
  username: String! @join__field(graph: REVIEWS, external: true) @join__field(graph: USERS)
  reviews: [Review] @join__field(graph: REVIEWS)
}

type Product {
  name: String!
  price: Int
  reviews: [Review]
  upc: String!
}

type Query {
  me: User
  topProducts(first: Int = 5): [Product]
}

type Review {
  author: User
  body: String
  product: Product
}

type User {
  id: ID!
  reviews: [Review]
  username: String!
}

Entity

@key directive

type Product @key(fields: "id") {
	id: ID!
	price: Int!
	...
}

Reference resolver

const resolvers = {
	Product: {
		__resolveReference(productRepresentation) {
			return fetchProductById(productRepresentation.id)
		}
	}
}

다른 subgraph의 entity를 참조하기

type Review {
	id: ID!
	rating: Float!
  body: String!
	product: Product!
}

type Product @key(fields: "id", resolvable: false) {
  id: ID!
}

Query flow 예제

query GetReviewsWithProducts {
	latestReviews { # 리뷰 subgraph에 정의됨.
    rate
    product {
			id
			price # 리뷰 subgraph에 정의되지 않음.
    }
  }
}

Query plan

query {
  latestReviews {
    score
    product {
      __typename
      id
    }
  }
}

query {
  _entities(representations: [...]) {
    ... on Product {
      price
    }
  }
}

[
  {
    "__typename": "Product",
    "id": "1"
  },
  {
    "__typename": "Product",
    "id": "2"
  }
	//...
]

@key 더 잘 사용하기

복수 @key

type Product @key(fields: "id") @key(fields: "sku") {
  id: ID!
  sku: String!
  name: String!
  price: Int
}

복합(Compound) @key

type User @key(fields: "id organization { id }") {
  id: ID!
  organization: Organization!
}

type Organization {
  id: ID!
}

다른 field를 참조해 계산되는 field 정의하기

type Product @key(fields: "id") {
  id: ID!
  shippingEstimate: String
}

type Product @key(fields: "id") {
  id: ID!
  size: Int @external
  weight: Int @external
  shippingEstimate: String @requires(fields: "size weight")
}

1. 상품 subgraph에서 상품의 size와 weight field를 쿼리하고,

2. 배송 subgraph에 상품의 size와 weight 값을 전달하여 shippingEstimate field를 쿼리합니다.

type Product @key(fields: "id") {
  id: ID!
  dimensions: ProductDimensions @external
  shippingEstimate: String @requires(fields: "dimensions { size weight }")
}

type ProductDimensions {
	size: Int!
  weight: Int!
}

다른 subgraph의 field를 resolve하기

• @shareable directive는 해당 field를 이 subgraph가 항상 resolve할 수 있는 경우,

• @provides directive는 해당 field가 특정 query path를 통해 요청된 경우에만 resolve할 수 있는 경우 사용합니다.

@shareable directive

# 상품 subgraph
type Product @key(fields: "id") {
  id: ID!
  name: String! @shareable
  price: Int
}

@provides directive

type InStockCount {
  product: Product! @provides(fields: "name")
  quantity: Int!
}

type Product @key(fields: "id") {
  id: ID!
  name: String! @external
  inStock: Boolean!
}

GraphQL Federation의 한계

Apollo Federation외의 대안이 없음

N+1 문제

type Query {
	products: [Product!]!
}

type Product {
	...
  reviews: [Review!]!
}

type Review {
	...
	users: [User!]!
}

type User {
	id: ID!
	...
}

1. 많은 수의 object type을 반환할 가능성이 있는 field에는 pagination을 적용하고,

2. DataLoader 패턴을 적용하여 동일한 여러개의 요청을 한 번에 처리하도록 해야 합니다.

마치며
